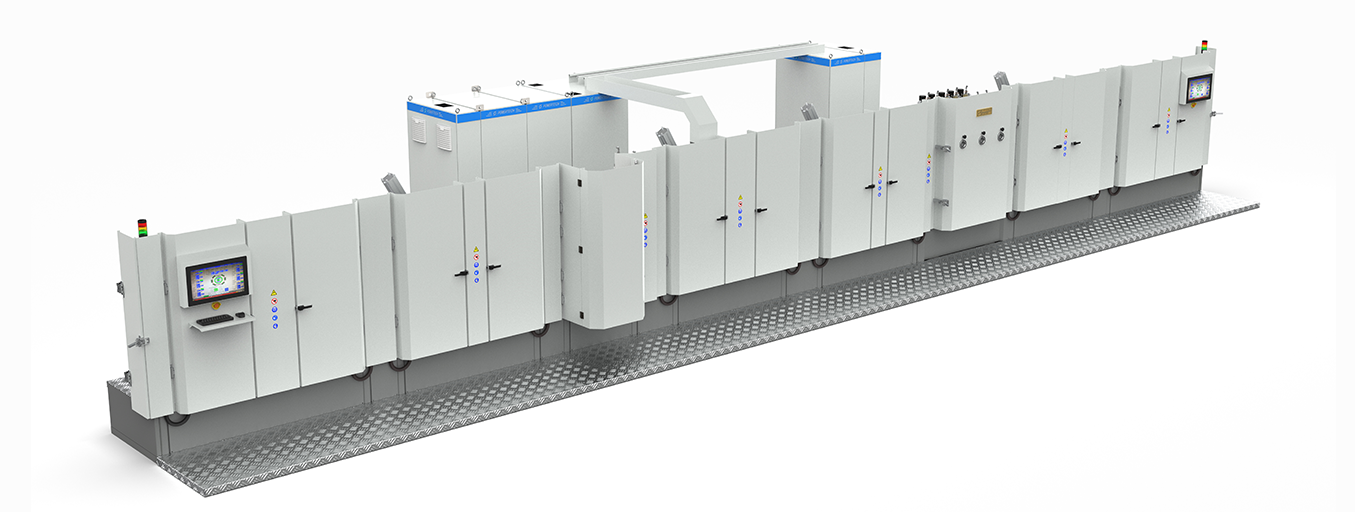

Hydrogen Energy Bipolar Plate Coating Equipment
.png "畫板 1 拷貝(2).png")
Product Introduction
.png "品牌(2).png"){kind=small}
Hydrogen fuel cell is a kind of clean, safe and reliable power equipment. Through the reaction of hydrogen and oxygen (air), it provides stable and reliable electrical energy for the final electrical equipment. Fuel cells can be used as power sources and backup power sources for new energy vehicles, and have a wide range of applications. We provide hydrogen fuel cell membrane electrode monomer/combined coating equipment, which can meet various needs from experiment to mass production. The hydrogen fuel cell metal bipolar plate coating achieves physical and chemical properties comparable to graphite bipolar plates.
Advantages and benefits
Reduce production costs;
Continuous production with high efficiency;
Fully automatic control of coating process;
Can provide venue planning, process support, and training;
Technical indicators
Device Model | SP-1812AS | SP-2112AS | SP-2417ASI | SP-5113ASI |
Vacuum Chamber Size (mm) | 1800×1200 | 2100×1200 | 3400×1700 | 5100×1300 |
Maxium vacuum | 6.0E-4Pa | |||
Air Extraction Time | Ambient Pressure to 5.0E-3Pa in less than 30 mins | |||
Pressure Rise Rate | 1h≤0.5Pa | |||
Vacuum pump Set | Mechanical pump,Roots pump,Molecular Pump,Maintaining Pump | |||
Heating System | Room temperature to 300 ℃ (PID controlled) | |||
Air lnjection System | Mass flow controller (1-4set) | |||
Targets | Cylindricar Target, Filter Arc Target, Pillar Sputtering Taret, Plane Arc Target, Plane Sputtering Target | |||
Power Supply | MF Sputtering Power Supply, Arc Power Supply, High | |||
Workpiece Rotation Method | Vertical Linear or Reciprocating Linear | |||
Operating Method | Manual+Semi-Automatic+Fully Automatic+PLC+IPC | |||
Note | Speciflcations can be fully customized according to customer's product and recipe requirements | |||
